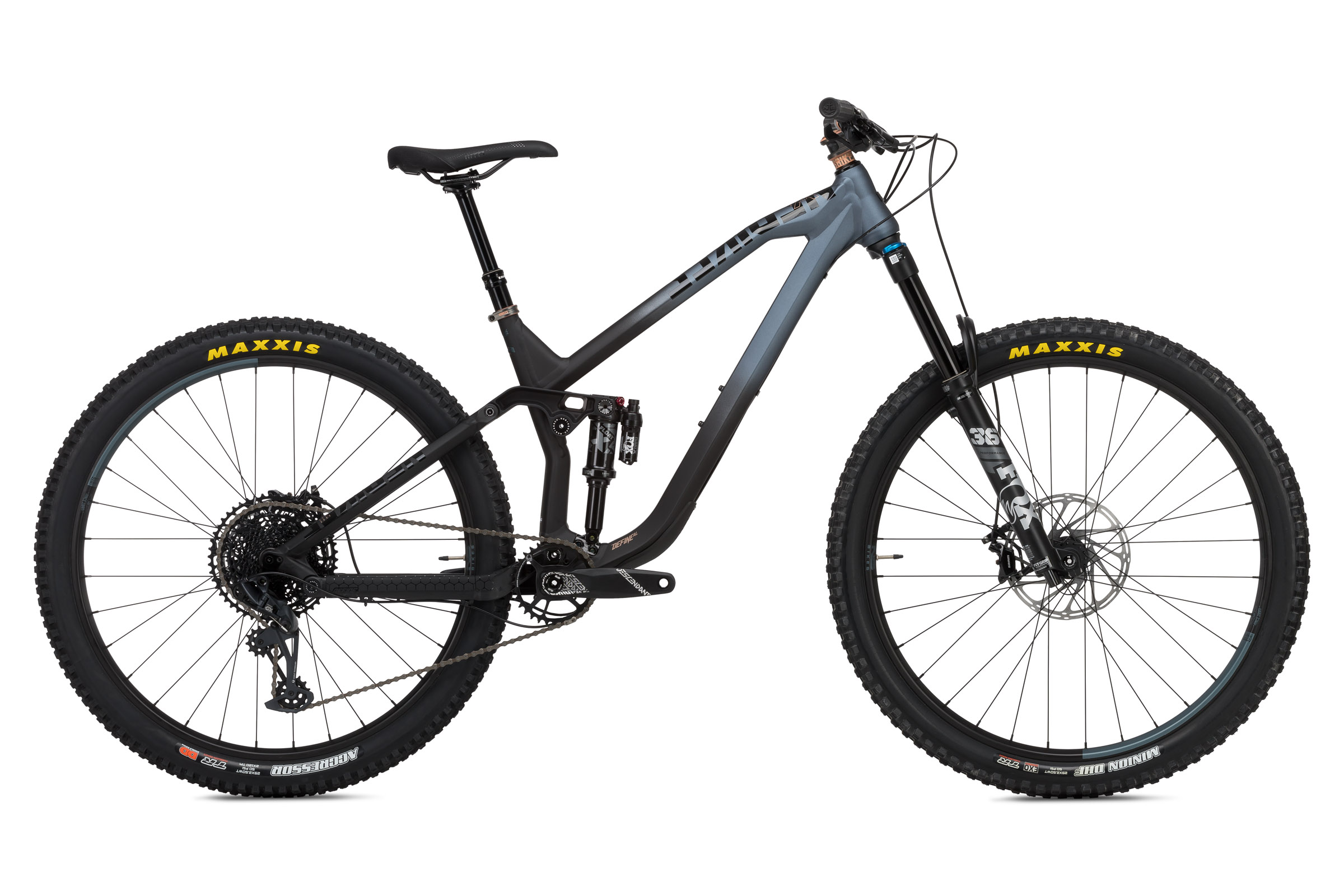

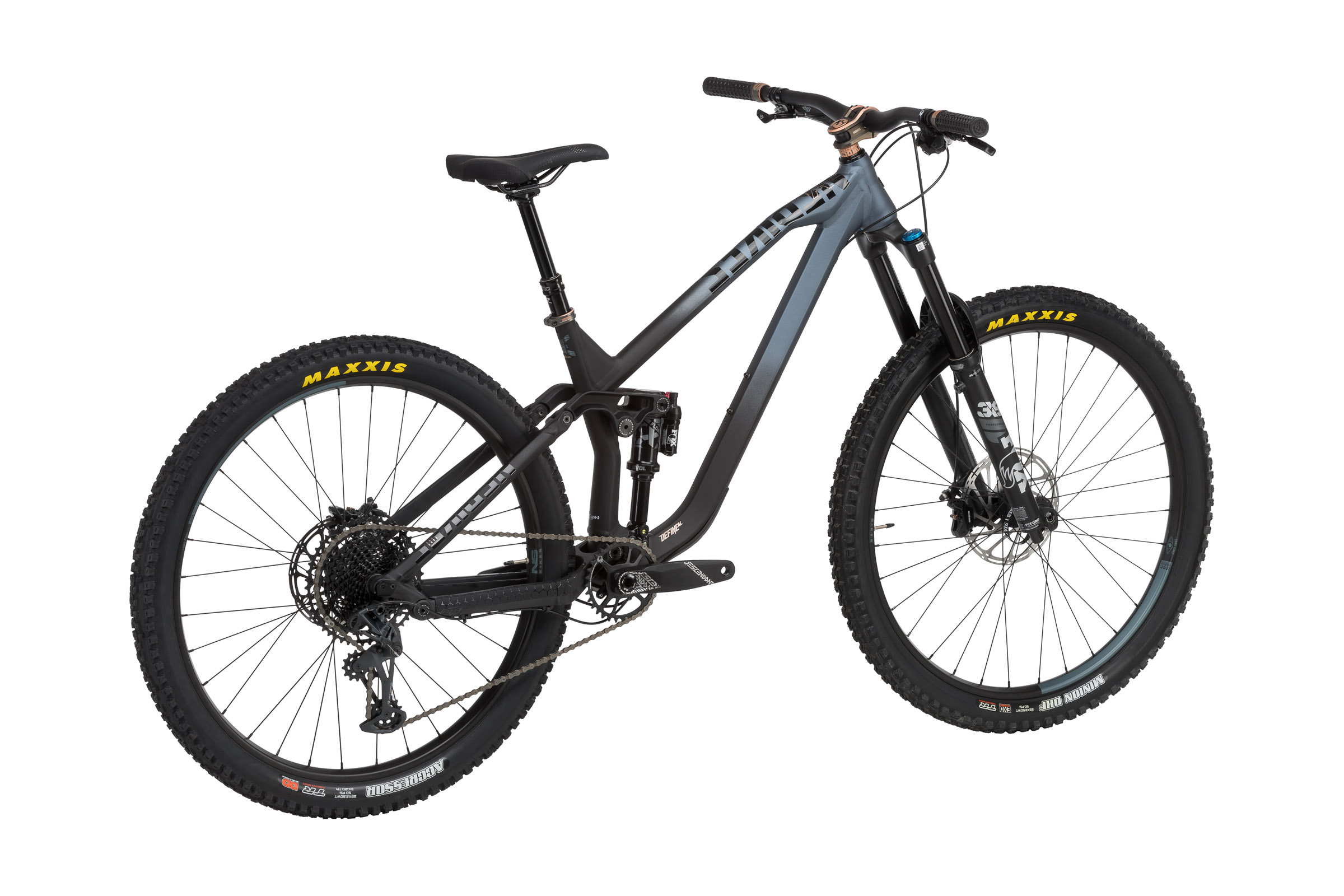

NS BIKES NS BIKES DEFINE AL 150 1
WITH OVER 150MM OF TRAVEL IN THE REAR AND A 160MM FORK THIS ALLOY 29ER CAN CAN BLAST THROUGH THE ROUGHEST STUFF, WHILE FEELING GREAT ON A WIDE RANGE OF TRAILS. THIS BIKE CAN PEDAL UP THE SECTIONS THAT OTHERS HAVE TO WALK AND FLY OVER SECTIONS THAT OTHERS HAVE TO PLOUGH THROUGH. THE ADJUSTABLE REACH AND BB HEIGHT WILL LET YOU DIAL THE BIKE TO YOUR RIDING STYLE AND THE TRAILS YOU PLAN TO RIDE. THE FRAME’S UNIQUE SEMI-INTERNAL CABLE ROUTING IS A SOLUTION THAT IS ELEGANT AND EASY TO SERVICE. LARGE, SEALED PIVOTS GUARANTEE LONG PERIODS OF SMOOTH, SERVICE FREE FUNCTION.
INTENDED USE CATEGORY: 7 - DOWNHILL, FREERIDE & ENDURO
MAIN FEATURES
- ALLOY FRAME WITH CUSTOM HYDROFORMED TUBES & DOUBLE PASS WELDS
- ADJUSTABLE BB HEIGHT
- PROGRESSIVE GEOMETRY WITH 44MM FORK RAKE
- 160MM FRONT / 150MM REAR TRAVEL
- FOX PERFORMANCE SUSPENSION (36 + FOX FLOAT X)
- RACE FACE AEFFECT R DROPPER POST
- SRAM GX 1X12 DERAILLEUR
- SRAM GUIDE RE BRAKES
5199,00€
frame:NS Define AL w/ 150mm travel, AL6061-T6 + AL6066-T6, custom hydroformed tubes,
sizes: S,M,L
rear shock:Fox Performace Float X 2pos-Adj Trunnion, Evol LV, DPX2 205x62,5
forks:Fox Float 36 Performance Grip, 160mm travel, 3pos-Adj w/ Open Mode Adj, 110x15mm Boost, 1.5T, 44mm offset
headset: integrated tapered IS42/IS52, sealed bearings
stem:NS Quantum Lite 35, 45mm
handlebar:NS Bar 35, 800mm, 20mm rise
grips:NS Hold Fast
seatpost:Race Face Aeffect R S-125, M-150, L-170mm, 31,6mm
saddle:WTB Volt Medium Cromoly
front brake:Sram Guide RE, 200mm
rear brake:Sram Guide RE, 180mm
levers:Sram Guide RE
rims:Octane One Solar 29”, tubeless compatible
spokes:Spokes w/14mm nipples
front hub:NS Rotary 15 Boost 15x110 disc (sealed bearings)
rear hub:NS Rotary Cassette 148x12mm Boost (sealed bearings)
tires front / rear:Maxxis DHF EXO/TR 29x2.5" WT / Maxxis Aggressor EXO/DD/TR 29x2.5" WT
crankset:Truvativ Descendant 6K DUB 170mm 32t
bottom bracket: Sram DUB BSA 73mm
pedals:/
chain:Sram, 12 spd
chainguide:/
derailleurs:Sram GX Eagle, 12spd
shifters:Sram NX EAGLE, 12spd
cassette:Sram PG-1210,12spd 11-50t
weight (kg): 14.9 (* M size, tubeless setup)
